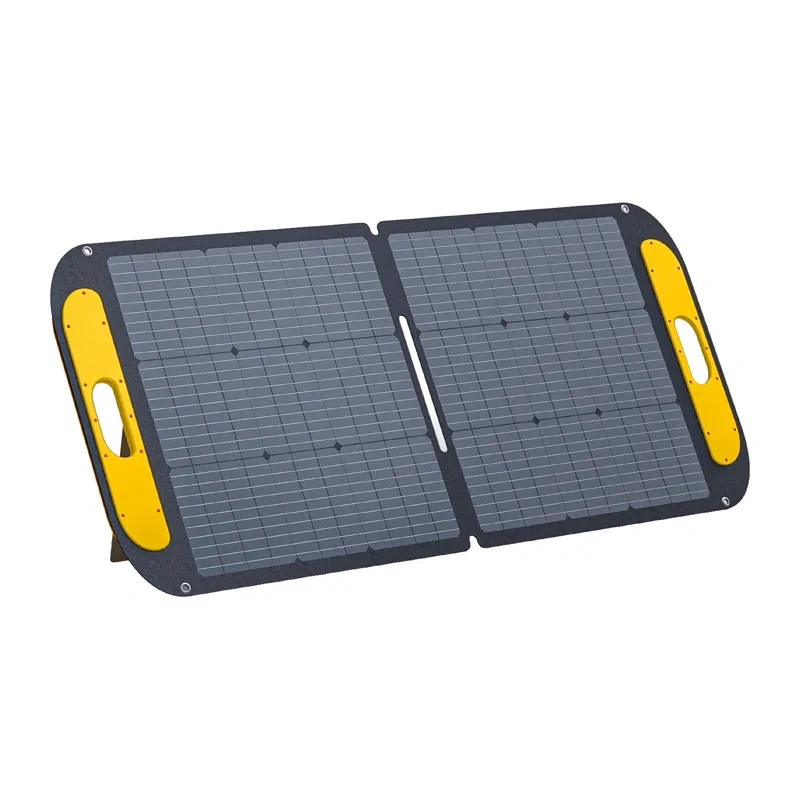

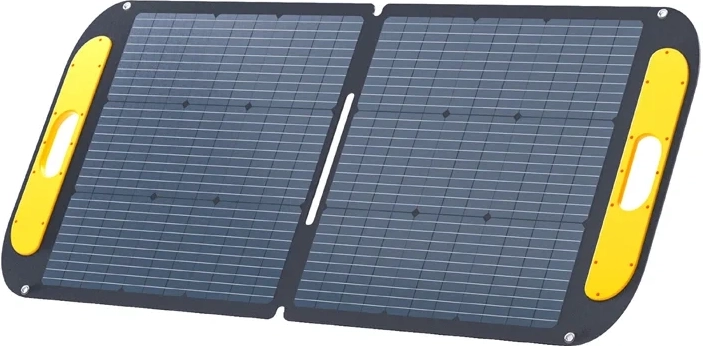

The VTOMAN VS110 portable folding solar panel delivers a peak output of 110 W and energy conversion efficiency of up to 25%. With IP67 protection, adjustable supports, integrated handles, and a wide range of connectors, it is a practical source of solar power for camping, travel, and backup power.
Efficient solar power output
Topcorn cells achieve energy conversion efficiency of up to 25%. The panel offers a peak output of 110 W, an operating voltage of 18 V, and an operating current of 6.1 A for efficient charging of compatible devices.

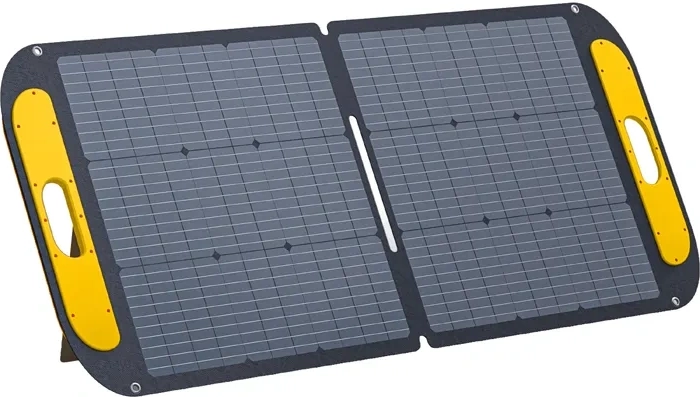

Folding and easy to carry
The two-part design folds down to 628 × 597 × 35 mm. Integrated yellow handles make it easy to carry, and the panel fits conveniently into travel or camping gear.

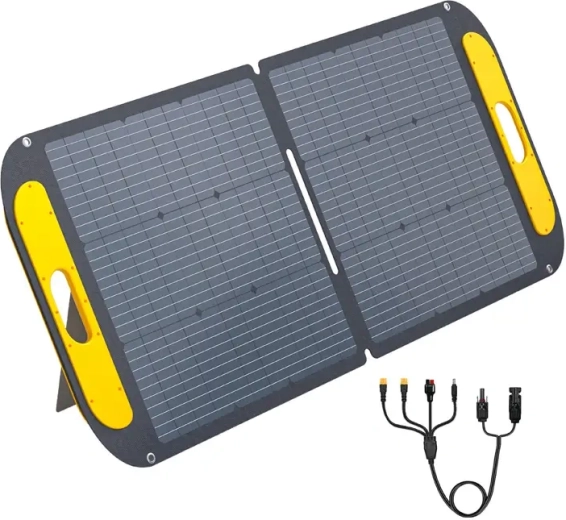

Flexible installation outdoors
Adjustable support legs help set the appropriate angle toward the sun. Metal eyelets also allow the panel to be hung, for example, on a caravan, balcony, or another suitable location.
The VTOMAN VS110 solar panel uses Topcorn cells to efficiently convert sunlight into electrical energy. It offers an operating voltage of 18 V, an operating current of 6.1 A, and a maximum output of 110 W. It is suitable for powering compatible VTOMAN portable power stations as well as devices from other brands.
The two-part folding design saves space during transport and storage. Integrated handles make it easy to carry, while the pocket on the back helps keep the connection cables neatly stored. Adjustable legs allow you to quickly set the appropriate panel angle toward the sun, while metal eyelets provide additional hanging options.
Main advantages:
- peak output of 110 W and conversion efficiency of up to 25%;
- durable design with IP67 protection for outdoor use;
- compatible with MC4, Anderson, XT60, XT90, and DC5521 connectors;
- folding design with handles, support legs, and cable storage;

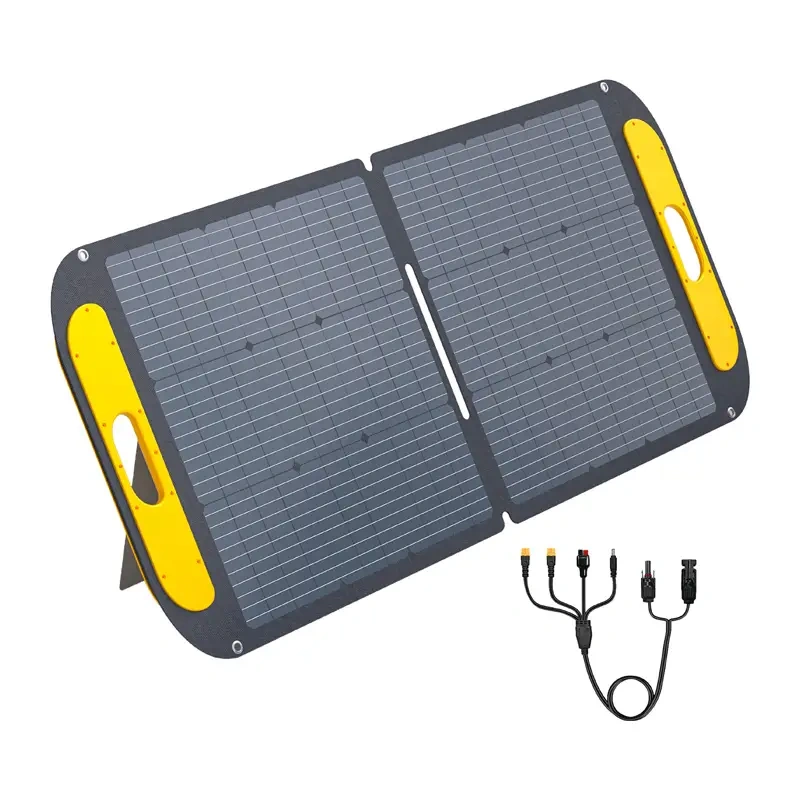

- the package includes an MC4 to XT60, XT90, Anderson, and DC5521 adapter cable.
Specifications
- Manufacturer
- VTOMAN
- Name
- VS110 portable solar panel
- Model
- YT-0242
- Peak output
- 110 W
- Operating voltage
- 18 V
- Operating current
- 6.1 A
- Open-circuit voltage
- 21 V
- Short-circuit current
- 6.4 A
- Conversion efficiency
- 25%
- Cell type
- Topcorn
- Protection rating
- IP67
- Net weight
- 11.57 lb
- Dimensions when folded
- 628 × 597 × 35 mm
- Dimensions when unfolded
- 1255 × 597 × 4 mm
- Compatible connectors
- MC4, Anderson, XT60, XT90, DC5521
- Compatible devices
- VTOMAN portable power stations and compatible portable power stations from other brands
- Compatible battery types
- Sealed lead-acid, gel, and flooded lead-acid batteries
- Included adapter cable
- MC4 to XT60 / XT90 / Anderson / DC5521
- Package contents
- VTOMAN VS110 110 W solar panel, MC4 to XT60 / XT90 / Anderson / DC5521 connection cable, user manual
