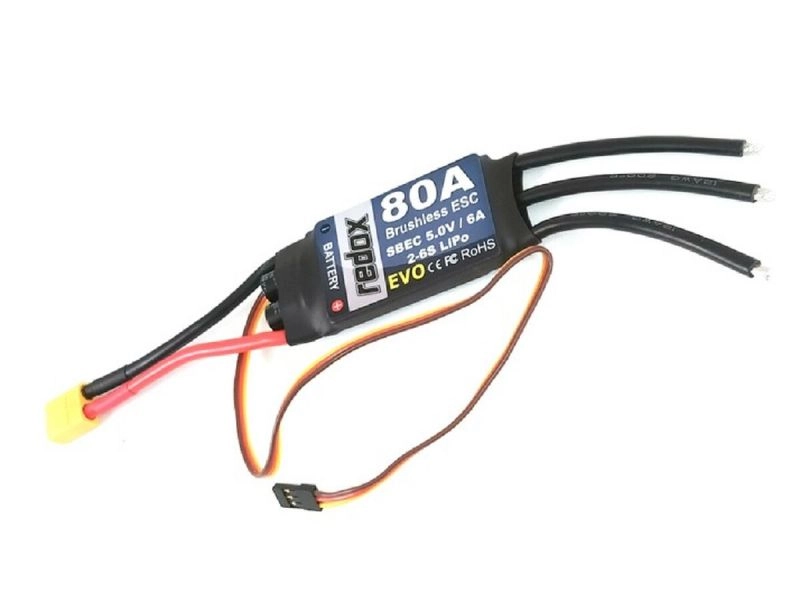

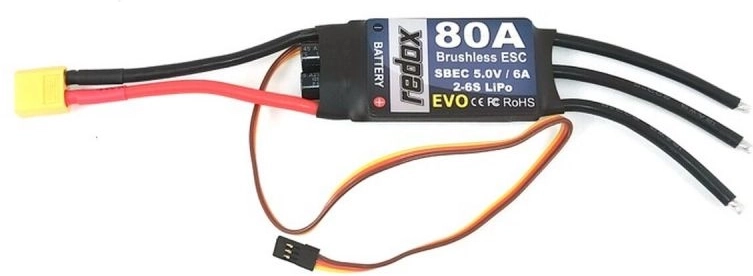

Universal Redox EVO 80A speed controller for brushless motors, designed for airplane and helicopter models. It offers quick programming using jumpers, a Redox EVO programming card, or via the throttle stick in programming mode.
Redox EVO 80A is a reliable controller for RC models that makes it easy to tailor powertrain behavior to the battery used and the flying style. Programming is possible either via a dedicated programming card (Redox EVO program card) or directly from the transmitter using the throttle stick (programming instructions are included with the controller).
Programmable modes and functions:
- Battery type: NiMH/NiCd or LiPo/LiIon (default)
- Low-voltage behavior: power reduction (default) or “hard” power cut-off
- Cut-off voltage thresholds: low / medium / high (LiPo 2.8 V / 3.0 V / 3.2 V per cell; NiMH 0% / 60% / 65% of initial voltage)
- Motor timing: auto / low / high
- Start curve: soft (default) or linear
- Flight mode (Governor): off (default) or helicopter
- Motor rotation direction: standard (default) or reverse
- Restore factory settings for all programmable options
- Brake: 2 modes – off (freewheeling) or on (immediate stop)
Specifications
- Length
- 82 mm
- Width
- 36 mm
- Height
- 13 mm
- Weight
- 81 g
- Operating voltage
- LiPo 2–6S (7.4–22.2 V) or 5–18 NiXX cells (6–21.6 V)
- Max. short-term current
- 100 A
- Continuous current
- 80 A
- BEC
- 5 V / 6 A
- Connectors
- unterminated wires (motor) / XT-60 connector (battery)
