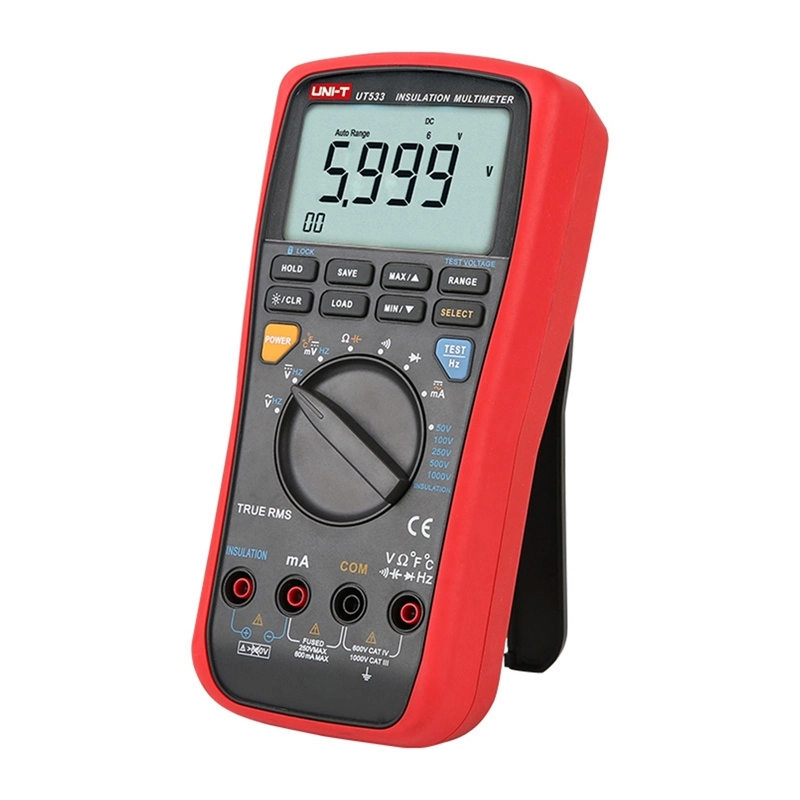

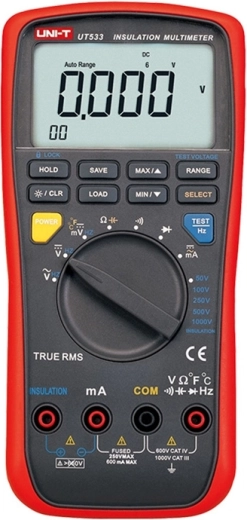

Uni-T UT533 combines the functions of a digital multimeter and insulation tester, making it a practical solution for electrical installations, servicing, laboratories and home use. It measures AC and DC voltage and current, resistance, capacitance, frequency and temperature. The RMS function helps ensure more accurate results when measuring distorted signals.
The insulation resistance tester operates in the range of 0.1 MΩ to 2 GΩ and uses test voltages from 50 to 1,000 V. It facilitates checking the condition of cables, electrical installations, motors and other equipment, making it possible to detect potential insulation damage in time.
The large backlit display with a resolution of 5,999 counts and dual-display function improves the readability of measured values. Practical use is supported by the HOLD, MAX/MIN and automatic power-off functions. The double-insulated housing, CAT III 1,000 V and CAT IV 600 V safety categories, and compliance with CE and RoHS contribute to safe and reliable operation.
