Professional 19" rack PDU with 9 SCHUKO outlets angled at 45° to save space, featuring an IEC C20 inlet, 2 m cable, and 16 A rating. The robust aluminum chassis is ideal for server rooms, network cabinets, as well as laboratory and home installations.

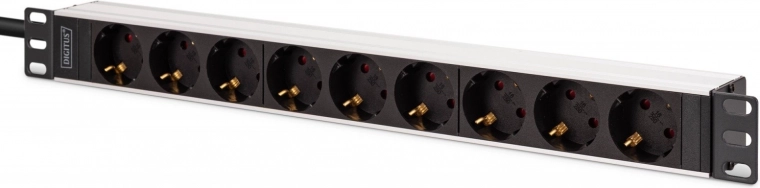

1U rack design with 9 SCHUKO outlets
Compact 19" PDU with nine outlets provides ample power outputs for servers, switches, and other equipment in the cabinet.

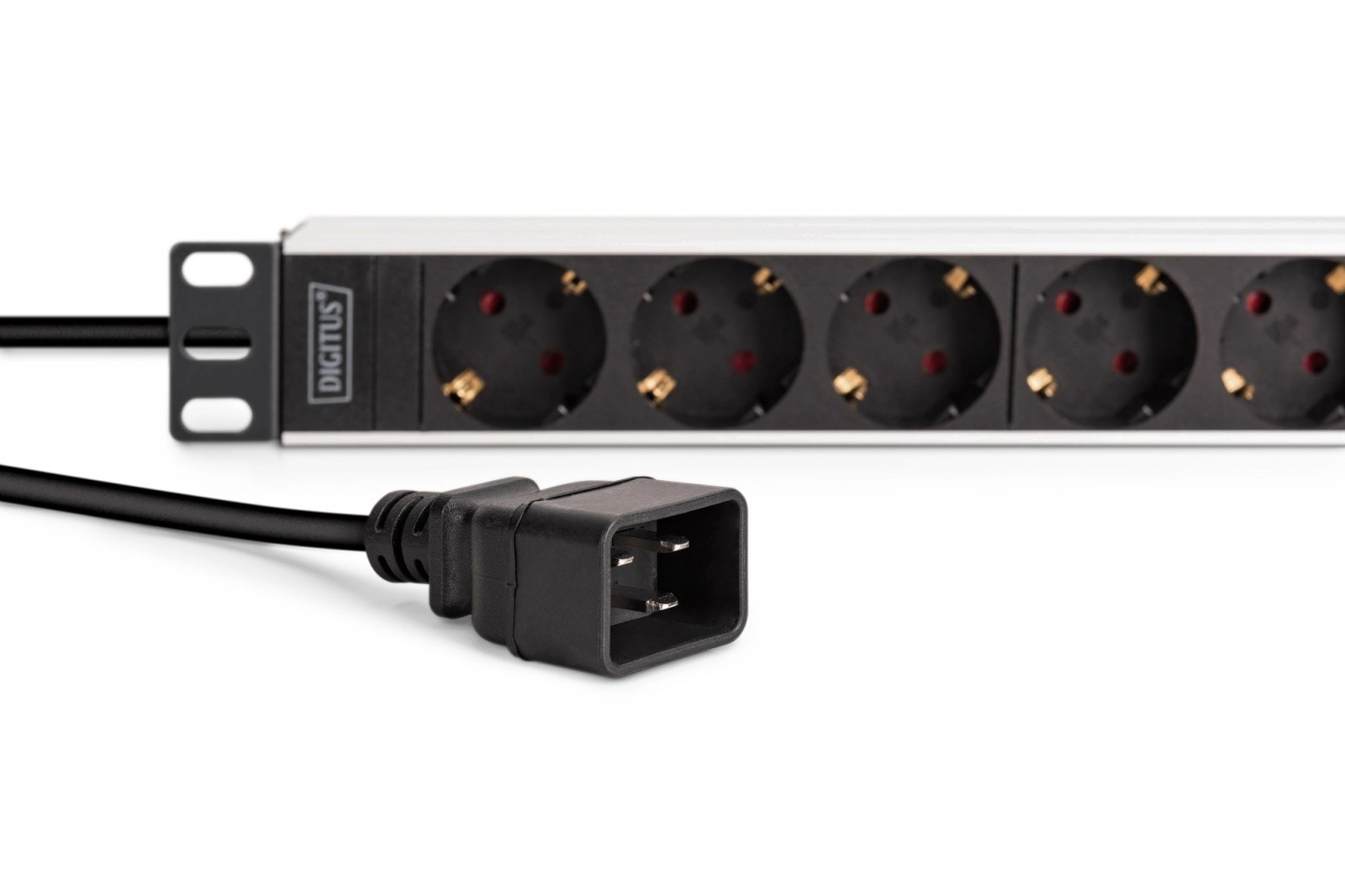

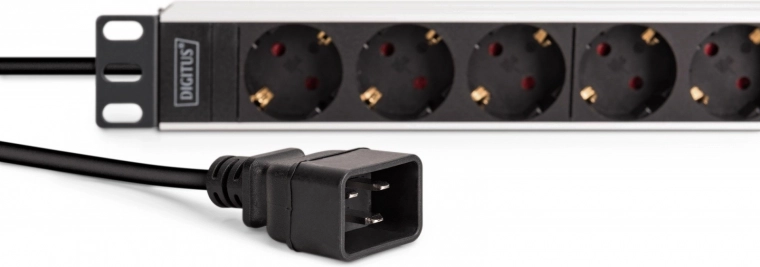

IEC C20 input for UPS connection
Optimized for backed-up power — the IEC-60320 C20 inlet enables easy integration with UPS and PDU infrastructure.

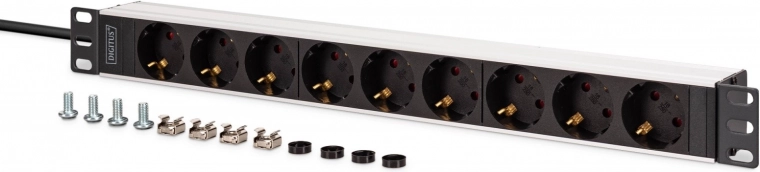

Outlets rotated by 45°
Smart outlet orientation improves accessibility and makes it easier to plug in bulky adapters without collisions.
This 19" rack power strip delivers reliable power distribution for IT infrastructure. SCHUKO outlets are rotated by 45°, simplifying the connection of power adapters and improving cable management. The IEC-60320 C20 inlet allows connection to UPS and other power sources.
Durable aluminum construction with plastic parts made of ABS UL-94V-0 ensures long service life and safe operation. The strip occupies 1U in the rack, and the 2 m supply cable enables quick and flexible installation.
- 19" / 1U design — space-saving in the cabinet
- 9× SCHUKO (DIN 49440) — ample outputs for servers and networking gear
- IEC C20 inlet — optimized for UPS connection
- 45° outlet orientation — better access and cable organization
- 16 A rated current — stable performance for demanding applications
- Aluminum body + ABS UL-94V-0 — strength and safety
- 2 m cable, conductor cross-section 1.5 mm² — convenient installation
Specifications
- Format
- 19" rack, 1U
- Number of outlets
- 9 × SCHUKO (DIN 49440)
- Outlet orientation
- 45°
- Input
- IEC-60320 C20, 230 V AC / 16 A
- Max. current per output
- 16 A
- Supply cable
- Length 2 m, conductor cross-section 1.5 mm²
- Chassis material
- Aluminum profile
- Plastic parts
- ABS UL-94V-0
- Use
- IT, networking, laboratories, home installations
